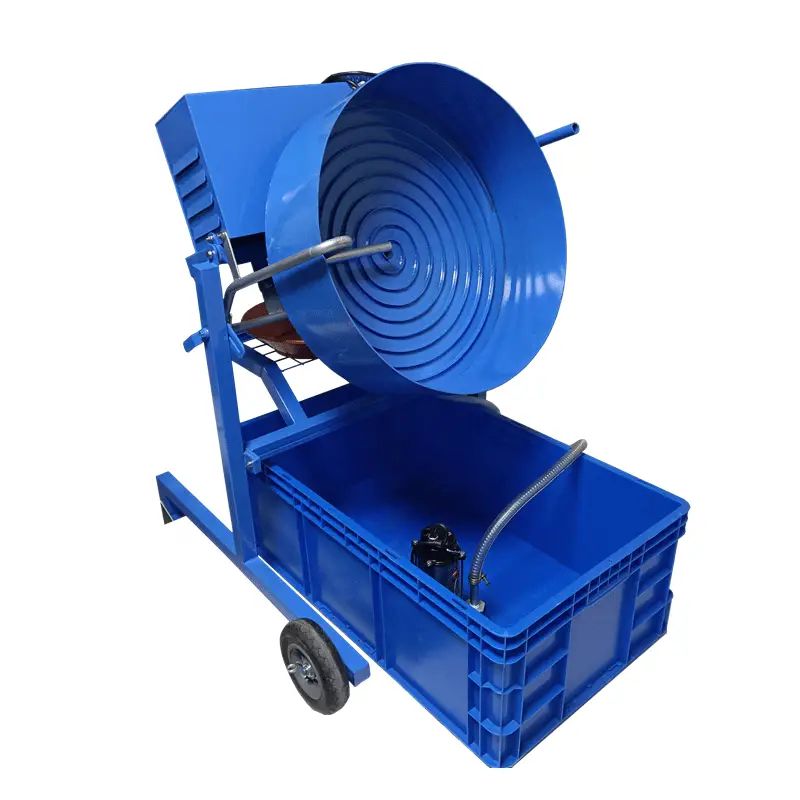

Super Concentrator Spiral Gold Wheel

Process Gold Faster and Smarter

Introducing the Super Concentrator Spiral Gold Wheel, engineered to swiftly separate heavy minerals like gold from clay and soil. Crafted from robust, wear-resistant steel, it's your go-to for efficient gold recovery.

🌟 High Capacity: Handles large volumes of material efficiently.

🌀 Large Spiral Wheel: 65cm / 26inch diameter for rapid material processing.

🚿Built-in Spray Bar: Comes with a built in spray bar to deliver the water and an accompanying waterproof mounted on/off switch for the drive motor.

📐 Adjust Wheel Tray: Use the lever to achieve the perfect operating angle.

👌 Maneuverable Design: Equipped with 2 ground wheels for easy site navigation.

🛠️ Sturdy Construction: Built with durable materials for long-lasting use.

Experience accelerated gold recovery with the Super Concentrator Spiral Gold Wheel. Perfect for prospectors seeking efficient separation of gold from earth materials, its robust design and adjustable features ensure optimal performance on any mining site.

In The Box

• AC 220v motor to drive the wheel
• AC 220v water pump to feed water into the wheel
• 185 litre water recirculation tub (100 x 63 x 35cm outer dims)
• Built in hose attachment to manually wash any stubborn material
• Gold pan to collect the gold

Specifications

• Size: 126 x 98 x 98 cm
• Capacity: 40-60 L/h - Depends on angle
• Weight: 65kg
• Motor Specs: 220v, 0.18kw, 1.55amps, 50hz. 1400 rpm.
• Pump Specs: 220v, .37kw, 2.8amps, 5m3/h, 3000 rpm.
