Minelab

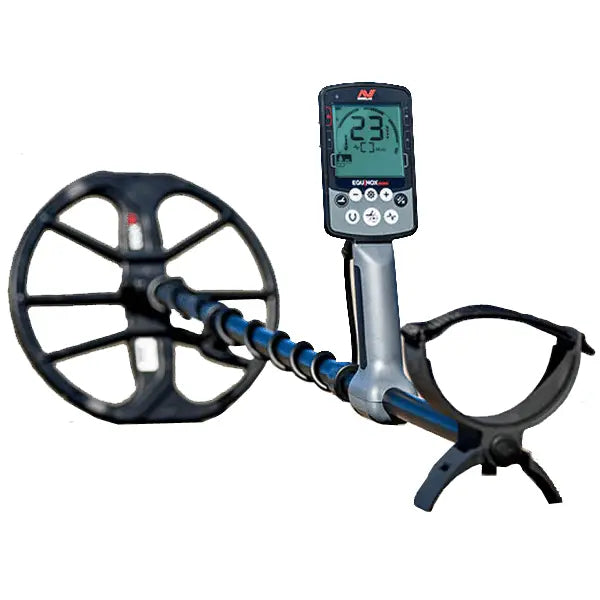

Minelab Equinox 800 Metal Detector

Minelab Equinox 800 Metal Detector

$1,299.00
$1,539.00 $1,299.00
Sale Sold out
Taxes included. Shipping calculated at checkout.
Features

With innovative NEW multi-frequency technology, the EQUINOX Series redefines all-purpose detecting for the serious enthusiast. Equally adaptable for all target types and ground conditions, just set your detecting location and go!

🔍 Versatile Performance: With Gold Mode, High Frequency 20/40 kHz, Wireless Audio, and Advanced Settings, the EQUINOX 800 offers unmatched versatility.

🎛️ Customizable Search Profiles: Save your favourite settings with 8 custom search profiles, ensuring optimal performance in every detecting session.

🌊 Waterproof Design: Fully submersible up to 3m, ideal for beach and water detecting, allowing you to explore rivers, streams, and lakes without limits.

🪶 Lightweight: Enjoy rugged yet lightweight construction for extended detecting sessions in any environment, without fatigue.

“Ideal beach/coin & relic detector. Waterproof to a depth of 3 metres, with optional waterproof headphones, sold separately.”

What's In The Box
  • 11″ Round Waterproof DD Coil
  • 11″ Skidplate
  • Bluetooth Headphones
  • Magnetic Charging Cable
  • Screen Protectors
  • Getting Started Guide
Warranty

The metal detector includes a 3-year warranty from the date of purchase, excluding the battery.

Downloads

Check out our collection of downloads to learn more about what the Minelab Equinox 800 Metal Detector has to offer!

Minelab Equinox 800 Brochure

Minelab Equinox 800 Instruction Manual

Minelab Equinox 800 Getting Started Guide



View full details

Purchase Now and Claim Your Free Gift!

Add your new detector and the training voucher to your cart, and you’ll receive the one-day field training session at no cost. Learn hands-on tips and techniques from experts to enhance your gold prospecting experience. Don’t miss out on this exclusive offer!

THE MULTI-IQ ADVANTAGE

True intelligent Simultaneous Multi-Frequency for maximum performance, plus a wide range of single frequencies.

Learn more about Multi-IQ Technology.

Untitled_design_17

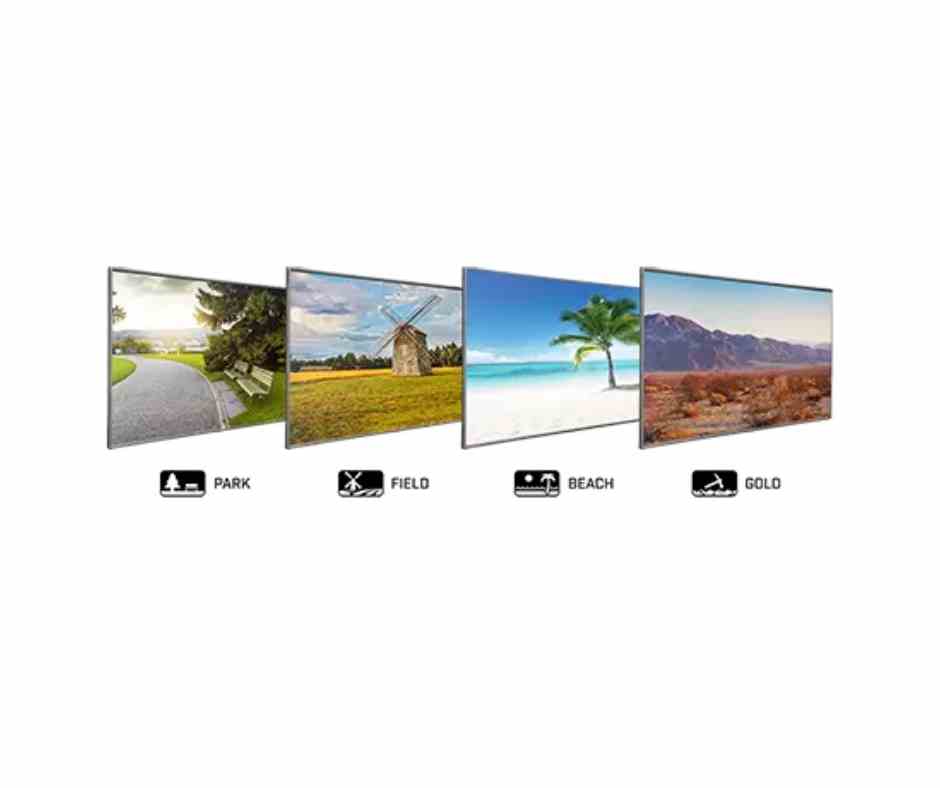

DETECT MODES

Equally adaptable for all target types and ground conditions:

  • Park
  • Field
  • Beach
  • Gold
equinox-recovery-speed

FAST & ACCURATE TARGET ID

Fast recovery speed with accurate Target ID ensures you won’t miss any valuable targets amongst the trash.

  • 8 CUSTOM SEARCH PROFILES

    Each Detect Mode features 2 custom Search Profiles so you can save your favourite settings in each mode.

  • WIRELESS AUDIO

    Experience ultra-fast wireless audio with the WM 08, or use fast aptX™ Low Latency / Bluetooth headphones.

  • SLEEK & LIGHTWEIGHT

    Rugged and lightweight construction allows you to enjoy long detecting sessions in any environment.

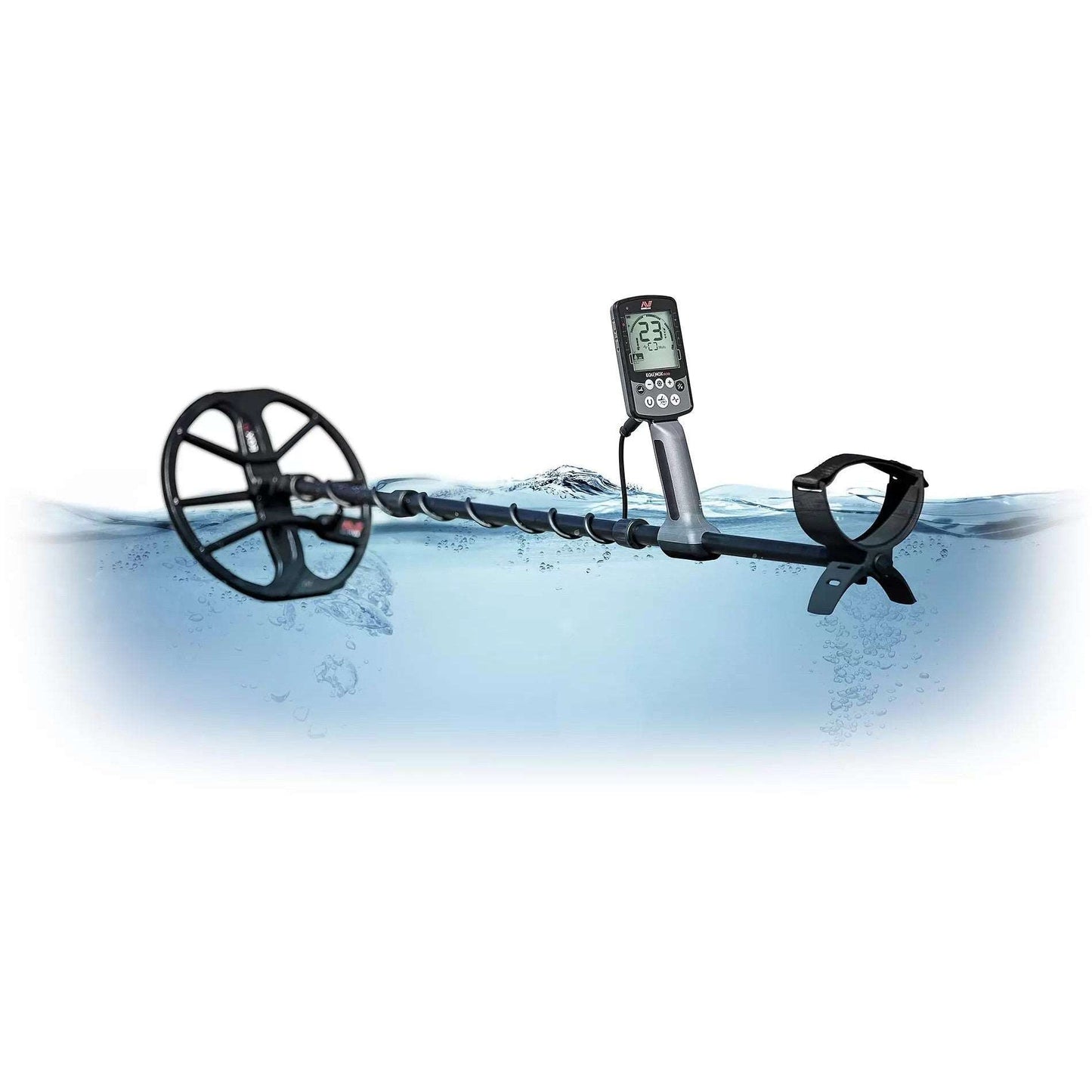

  • WATERPROOF

    EQUINOX is fully submersible, ideal for detecting at the beach and in rivers, streams and lakes. (3m / 10-feet).

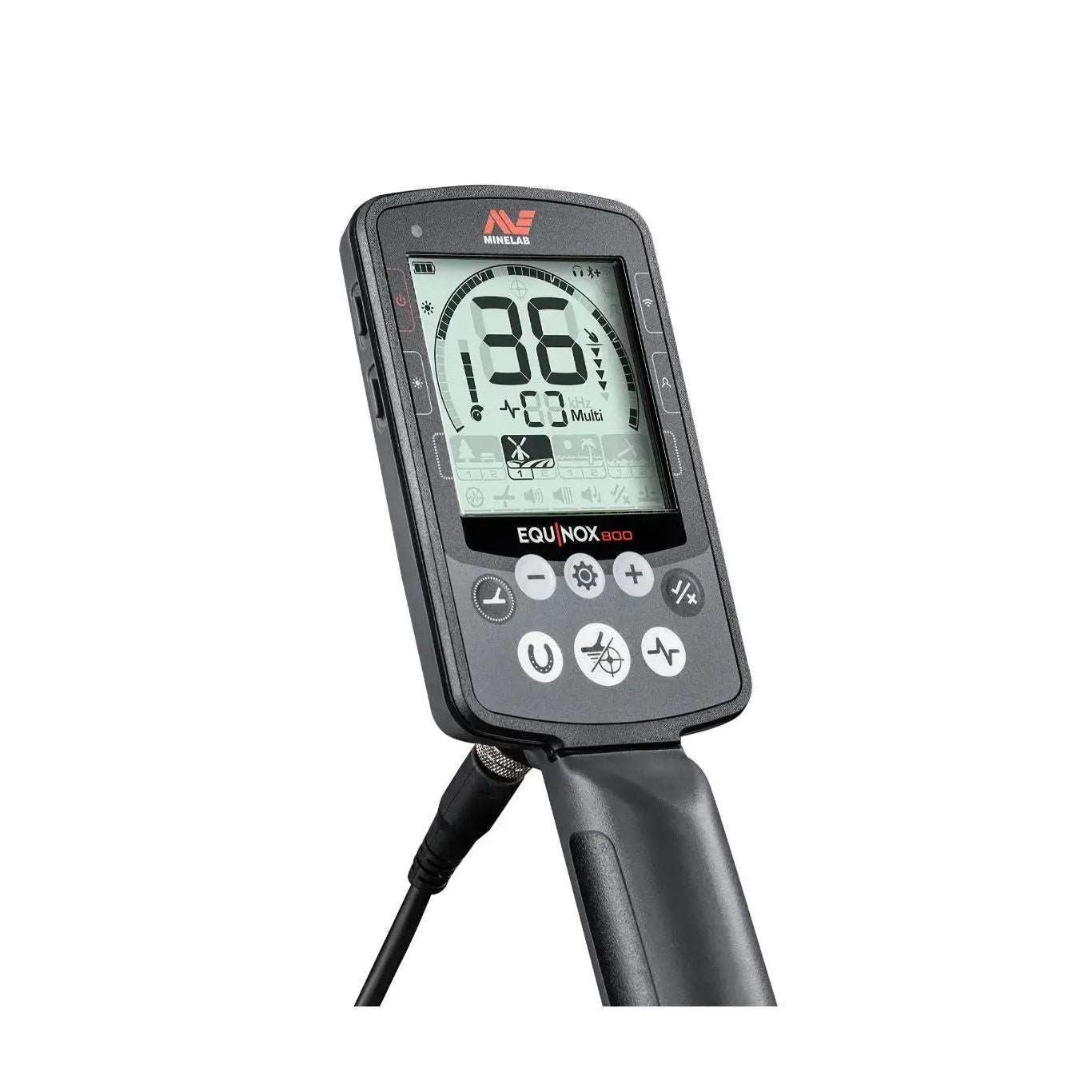

  • USER INTERFACE

    The clear LCD features large Target ID numbers so you can see your target ID at a glance. All of the information you need when detecting is right there in front of you.

    Detect Modes and operating frequency can be instantly changed at the push of a button for a dynamic and uninterrupted detecting experience.

  • ADVANCED SETTINGS

    Gain even more control of your detector audio with Advanced Settings; you decide how much target information you hear.

Specifications

Equinox 800 Tech Specs

Detect Modes: Park | Beach | Field | Gold

Custom Search Profiles: 8 (2 per Detect Mode)

User Profile Button: Yes

Operating Frequencies (kHz): Multi, 5, 10, 15, 20, 40

Noise Cancel: Auto | Manual (-9 to 9)

Ground Balance: Auto | Manual

Sensitivity: 1–25

Target Volume: 0–25

Threshold Level: 0–25

Threshold Pitch: 0–25

Target Identification (TID): 50 ID's | Ferrous: -9 to 0 | Non-ferrous: 1 to 40

Target Tones: 1, 2, 5, 50

Tone Break: Ferrous | Non-ferrous

Tone Pitch: Ferrous | Non-ferrous

Tone Volume: Ferrous | Non-ferrous

Depth Indicator: 5 levels

Length: 1440 mm (56.7")

Weight: 1.34 kg (2.96 lbs)

Standard Coil: 11-inch Double-D Smart coil with skidplate (waterproof to 3m/10')

Audio Output:

In-built loudspeaker

3.5mm (1/8") headphones (included)

Bluetooth compatible

WM 08 Wi-Stream compatible

Headphones (included): Bluetooth and aptX™ Low Latency headphones (non waterproof)

WM 08 (included): Yes

Display: Monochrome LCD with backlight

LCD Backlight: Low | Medium | High | Off

Battery: In-built rechargeable Lithium-ion battery

Battery Runtime: Approx. 12 hours

Waterproof: Waterproof to 3m/10-feet

Key Technologies: Multi-IQ | 5F×8 | Wi-Stream | Bluetooth | aptX™ Low Latency

Other Accessories: USB Charging cable (1.5A), Multi Language Screen protectors

Software Upgradeable: Yes, via USB connection (Windows and OSX)

Warranty: 3 years control box and coil

Discrimination Segments: 50

Equinox 800 Technologies

MULTI-IQ

Multi-IQ Simultaneous Multi-Frequency

Low frequencies typically give more depth on large targets than high frequencies, which are usually more sensitive to small targets. With Multi-IQ you can operate across the full spectrum of frequencies simultaneously for maximum results.

5FX8

5F×8​ (Five Frequency Times Eight) provides five individual transmit frequencies in the one metal detector, selectable at the push of a button. Each transmit frequency optimises the detector for different size targets and conditions. EQUINOX 800 offers 5 single frequencies of 5, 10,15, 20, and 40 kHz, giving an 8 times range or ratio from 5 to 40, hence the 5F×8 technology designation.

The individual selectable frequencies in EQUINOX 800 are:

5 kHz - Great for large silver coins
10 kHz - Good for small Roman hammered coins
15 kHz - A good general treasure detecting mode
20 kHz - Ideal for general treasure detecting and gold prospecting
40 kHz - Optimum sensitivity to very small gold nuggets

Having five selectable frequencies gives the versatility that is equivalent to five conventional single frequency detectors.

Note that EQUINOX Series detectors also feature Multi-IQ technology which allows you to operate all available single frequencies plus more, simultaneously. The option to operate your detector in a single frequency can be helpful if you are experiencing excessive ground noise when using the Multi-Frequency setting.
