High-Quality CNC Aluminium Trommel: Built to Excel
Crafted with precision, this trommel sets the standard for durability and efficiency.
🛡️ Construction: Built from CNC laser-cut and folded aluminium for robustness and reliability.

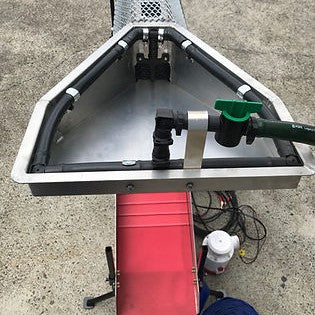

💦 Internal Spray Bar: Enhances material processing efficiency, including a 12v 4700gph pump and fittings.
🚀 High Torque Motor: Features a 2-speed, 12v electric motor with 10mm thick steel gears, ensuring reliable operation. Guarding around the gear set prevents debris from entering.
🕝 Adjustable Sluice: Includes a 10" sluice mat of proprietary design, with fully adjustable angles for optimal performance.
🪶 Lightweight: Weighs only 24kg for easy portability, despite its 1m height and 1.5m length.
Note: While some images show the prototype unit, most production versions feature raw aluminium finishes for the hopper, barrel, and sluice, with powder-coated or hot-dip galvanized mild steel components.
Experience superior performance and mobility with the CNC Aluminium Trommel, designed for serious prospecting enthusiasts who demand efficiency and durability in their equipment.
Specifications
-
Construction: CNC laser-cut and folded aluminium construction
-

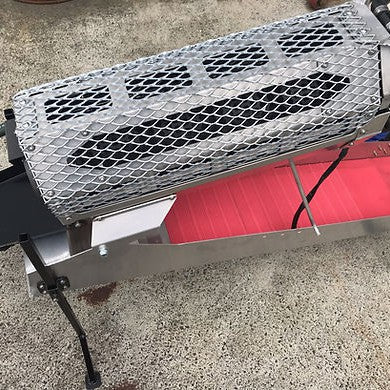

Barrel Dimensions: 150mm diameter x 600mm long
-
Barrel Material: 1.6mm 350 grade steel with black zinc plate finish
-
Breaker Bars: 3 removable bars inside the barrel to aid in tumbling and breaking up clay
-

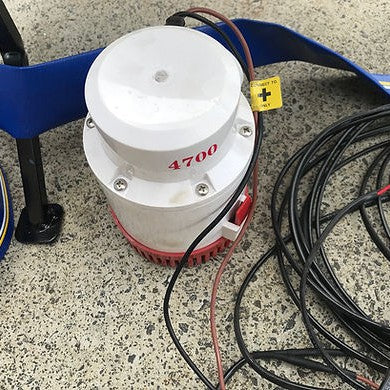

Internal Spray Bar: Included, with a 12v 4700gph pump and associated fittings
-
Motor: 2-speed, 12v high torque electric motor
-
Gears: 10mm thick steel gears
-
Gear Housing: Guarding around the gear set to prevent rocks and debris from entering
-
Sluice Mat: 10" mat of proprietary design, fully adjustable angles
-
Dimensions:
- Height: 1 meter
- Length: 1.5 meters
-
Weight: 24kg
