Minelab

CTX 3030 Metal Detector

CTX 3030 Metal Detector

$3,199.00
$3,299.00 $3,199.00
Sale Sold out
Taxes included. Shipping calculated at checkout.
Features

The waterproof all-terrain CTX 3030 is the ultimate high performance treasure detector! Discover more historical treasures with the most accurate target identification available.

🎯Achieve effortless target selection by accepting desired targets while rejecting unwanted ones

🎧 Wireless Audio: Experience freedom with wireless audio options, including built-in speaker and headphone compatibility.

📍 Integrated GPS: Navigate to favourite spots and record finds with Minelab’s exclusive integrated GPS, compatible with Google Maps via XChange 2 PC app.

🚀 Easy Operation: ‘Switch on and go’ simplicity, five preset Search Modes, and automatic functions cater to both beginners and experienced treasure hunters.

“The waterproof all-terrain CTX 3030 is the ultimate high-performance treasure detector. Discover more historical treasures with relivable integrated GPS tracking.”

What's In The Box
  • 11″ DD Coil
  • 11″ DD Skidplate

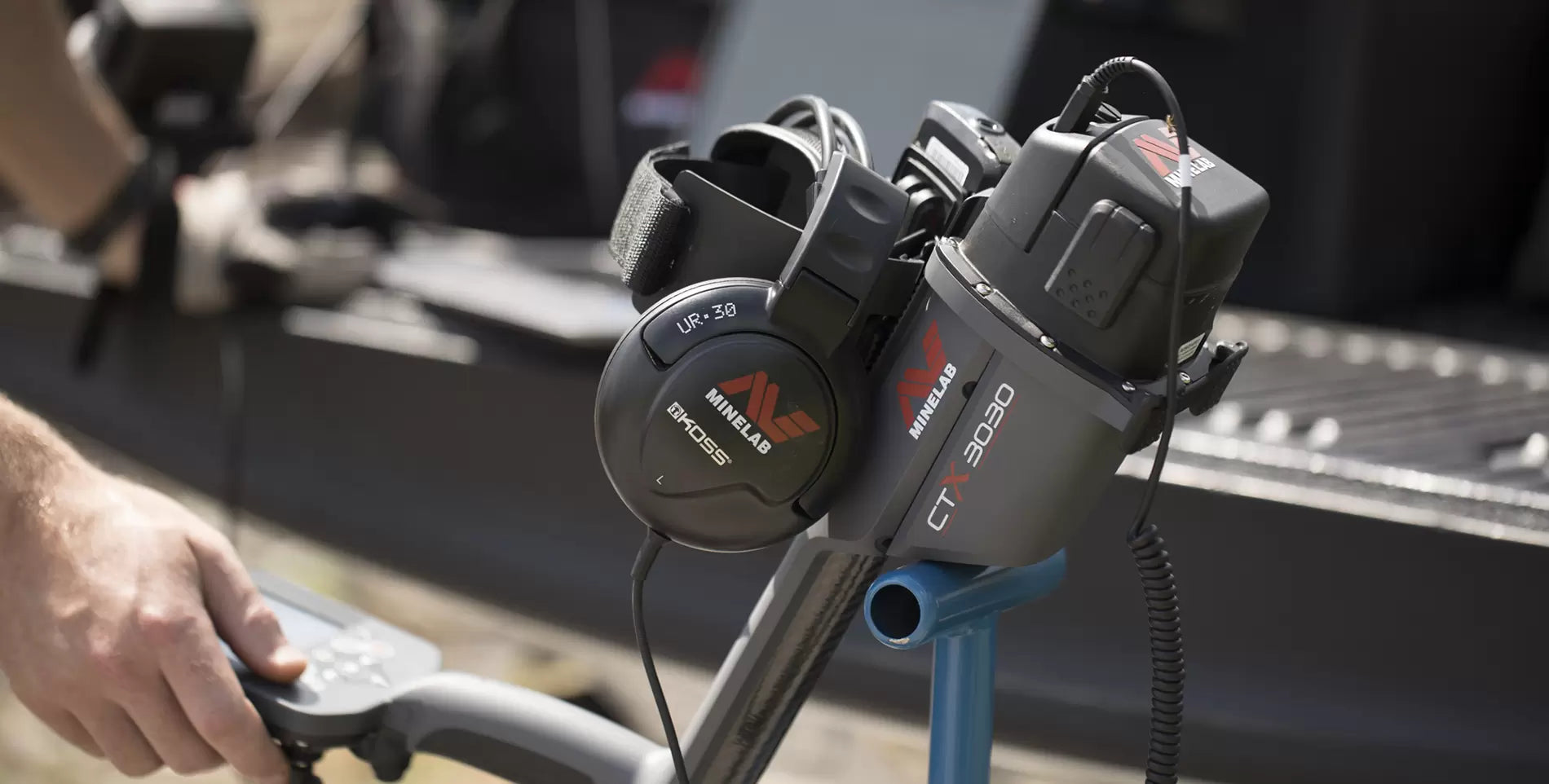

  • Wired Headphones
  • Chargers
Warranty

This product includes a 3-Year Warranty on the Control Box and Coil.

Downloads

Check out our collection of downloads to learn more about what the Minelab CTX 3030 Metal Detector has to offer!

Minelab CTX 3030 Brochure

Minelab CTX 3030 Instruction Manual

Minelab CTX 3030 User Manual

Minelab CTX 3030 Getting Started Guide



Specifications



View full details
Untitled_design_36

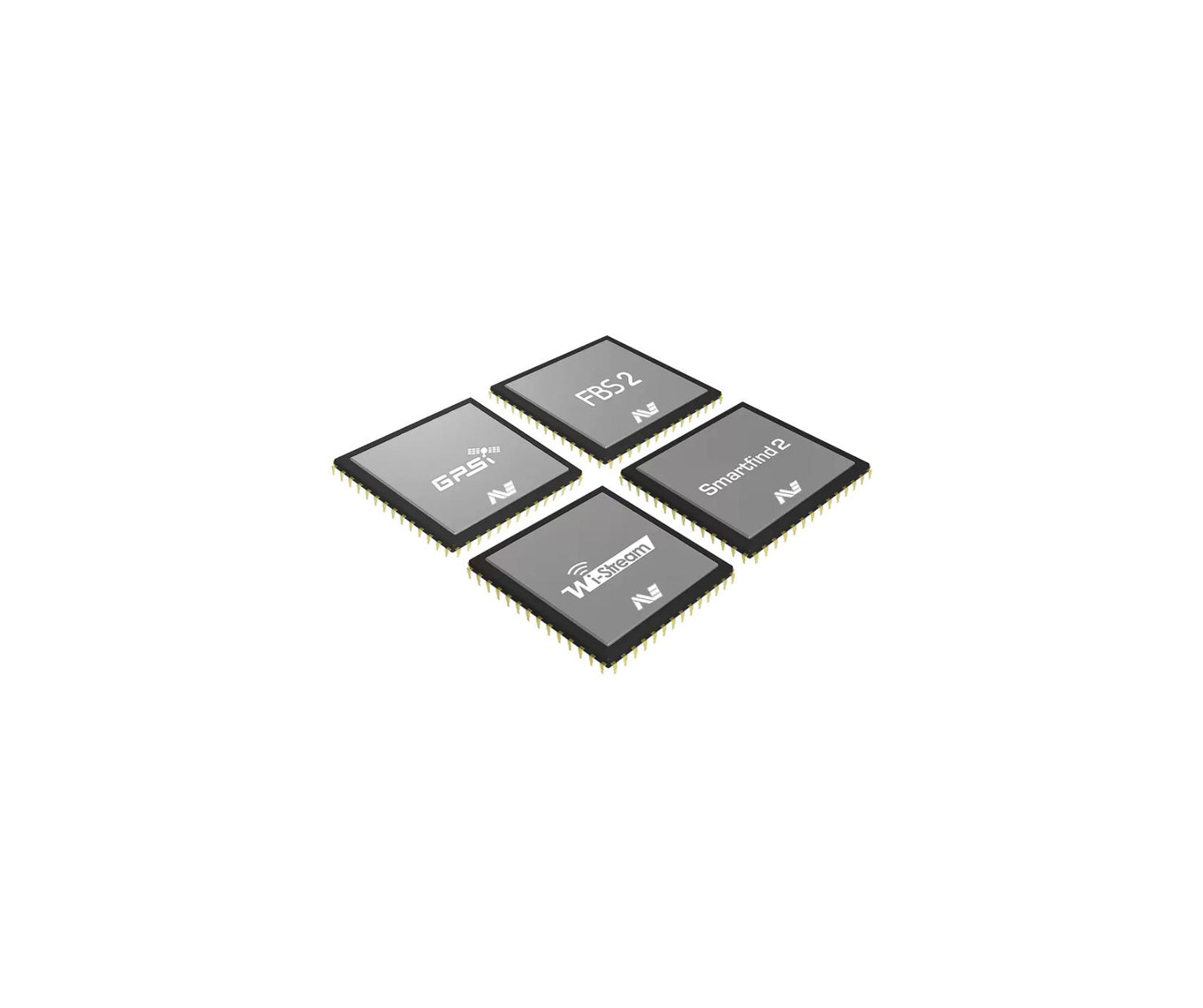

FBS 2, SMARTFIND 2, GPSI, AND WI-STREAM TECHNOLOGY

  • FBS 2: Uses multiple frequency transmission and coil-to-detector data communication to find more targets in variable ground conditions.
  • Smartfind 2: provides digital signal processing and precision FeCo discrimination, with colour target information, for the best target identification results.
  • GPSi: has very high sensitivity for accurate recording of geo locations.
  • Wi-Stream: creates very fast wireless audio with no loss of sound quality.
Untitled_design_12

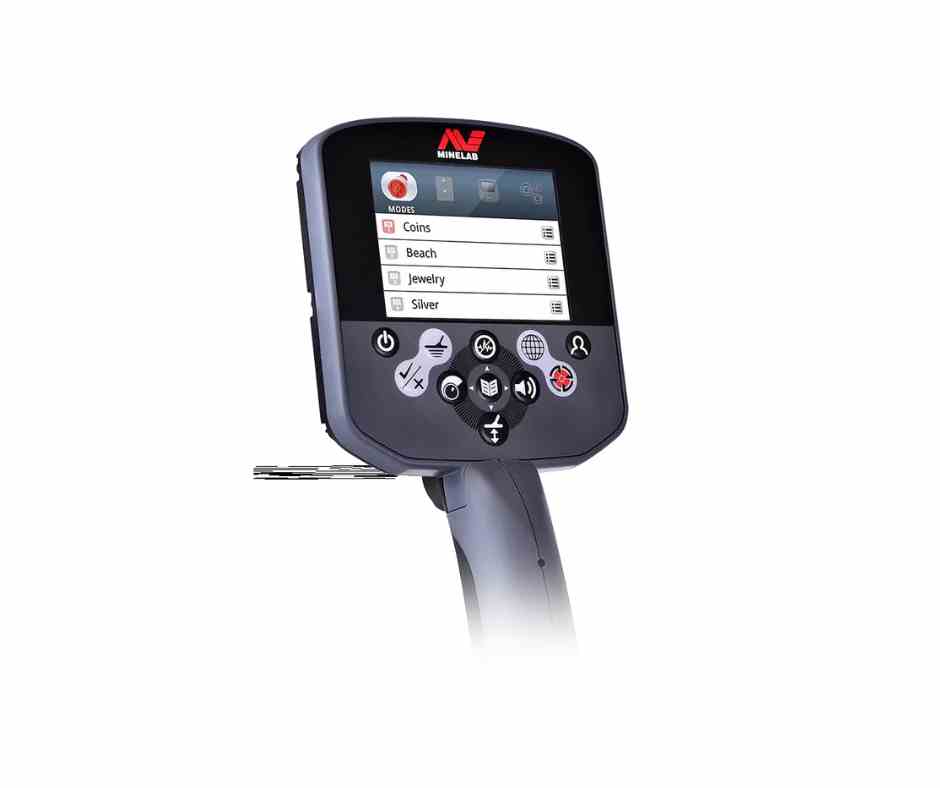

QUICK MENUS

Quick Menus give you easy access to ‘on the go’ adjustments. Smart functions (Sensitivity, Noise Cancel, Audio, Ground Balance) and a customisable User button allow fast changes to your most used controls while detecting.

  • ERGONOMIC DESIGN

    The well balanced design has all the battery weight behind the armrest for comfortable detecting. The detector is fully adjustable to suit your needs.

  • WATERPROOF

    You can go detecting anywhere with this versatile TREASURE detector. You have the flexibility of land and underwater detecting as the CTX 3030 is waterproof* to 10 ft (3 m).

  • ULTIMATE FECO DISCRIMINATION

    With Ferrous (Fe) and Conductivity (Co) target resolution, plus adjustable Tone ID Profiles, you can detect (accept) the targets you want to and ignore (reject) the rest. With Target Trace and Target Separation, you can identify multiple targets simultaneously for accurate detecting results.

  • WIRELESS AUDIO

    Have the freedom to detect without your headphones being attached to your detector. With the WM 10 Wireless Module^ you have the choice of using the built-in speaker, supplied headphones or your own favourite headphones.

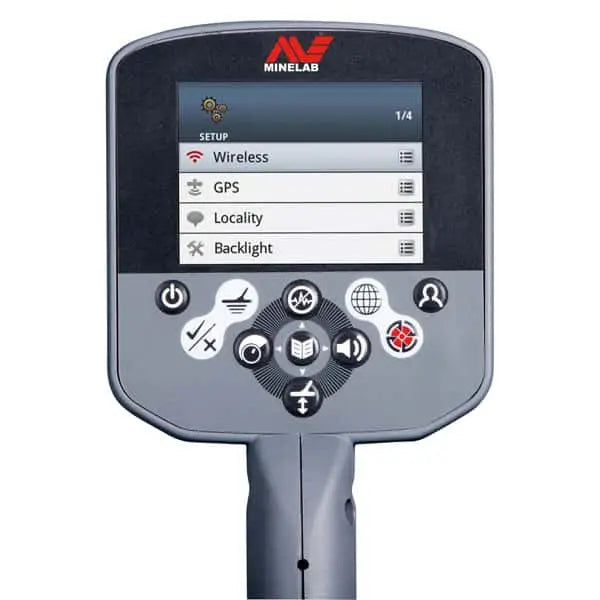

  • FULL COLOUR DISPLAY

    The full colour LCD clearly displays more target information than ever before and greatly enhances the CTX 3030’s discrimination capabilities.

  • GPS LOCATING

    See where you have been, and where you are going, by using the Map screen and Navigation Tool.

    • GeoTrails show the ground that you have already covered.
    • WayPoints mark points of interest.
    • FindPoints mark your treasure locations.
    • GeoHunts record your entire detecting adventure.

  • PC MAPPING

    Upload all of your detector settings and treasure locations to your PC using the XChange 2 application. Attach photos and text to your finds, group them into categories. View the locations on Google Maps. You can also download data to your detector for re-exploring favourite areas.

    Used by evidence recovery teams to manage data in the field from your command post.

    View FAQs for XChange 2 here.

  • ACCESSORY COILS

    The CTX-3030 offers a variety of coils for specialised detecting.

Specifications

CTX 3030 Tech Specs

Application: Coin, Relic, Jewellery & Beach (waterproof up to 10ft)

Technology: FBS 2, Smartfind 2, GPSi, Wi-Stream

Frequency/Transmission: Multiple frequencies: 1.5 - 100kHz

Coil (standard): 11-inch waterproof Double-D smart coil

Audio Output: Built-in speaker, standard ¼-inch non-waterproof socket, custom waterproof socket (Minelab accessory headphones only)

Headphones Supplied: KOSS UR30 (100 ohm) supplied with detector (non-waterproof)

Visual Display: Full colour LCD with backlight and adjustable brightness (1–10)

Backlight: Yes

Product ID: 88961

USB Connectivity: USB interface for XChange 2 PC software

Memory: Settings saved automatically while detecting and remain until changed or reset

Depth Indication: Accurate gauge active in normal detecting and Pinpoint mode

Detect Modes: 10 fully customisable, including 5 preset (Coins, Beach, Relic, Silver & High Trash)

Discrimination: Smartfind 2TM 2 dimensional colour discrimination: Ferrous 35, Conductivity 50 - 20 fully customisable discrimination patterns (2 per Search Mode)

Audio tone: Customisable Tone ID Profiles - 1, 2 ferrous (Fe), 2 conductive (Co), 4 Fe, 4 Co, 35 Fe, 50 Co or Combined

Audio Type: Normal, Long, Smooth & Pitch Hold

Ground Balance: Auto Compensation and Auto Ground Balance

Pinpoint: Non-motion with modulated audio and visual crosshair on LCD, 2 modes: normal and sizing

Sensitivity Adjust: Auto and Manual (1–30)

Tune / Noise Cancel: Manual & Automatic (11 channels)

Threshold: Level adjustment (1–50), Pitch adjustment (1–30)

Target Volume Adjust: Limit & Gain (1 to 30)

Battery: Li-ion pack with fast charger. 12 V car adapter supplied with Standard Pack only

Low battery alert: Audio & visual indication.

Length: Min 37 in. (940 mm) – Max 55.3 in. (1405 mm)

Weight: 5.20 lbs (2.36 kgs) including Li-ion battery pack

Warranty: 3 years control box & coil

CTX 3030 Technologies

FBS 2

FBS 2 combines Minelab's FBS multiple frequency rectangular-wave transmission (1.5 kHz –100 kHz) with advanced digital coil-to-detector communications. The precisely calibrated smart coils and detector electronics allow advanced signal analysis for more accurate detection.

SMARTFIND 2

Smartfind 2 greatly enhances Minelab's FeCo Discrimination to analyse and display a target's Ferrous (Fe) and Conductive (Co) properties on a full colour LCD.

Ultra-fast microcontrollers carry out digital signal processing to provide significantly improved target separation.

GPSI

GPSi uses the high performance and flexibility of a u-blox GPS positioning engine to seamlessly integrate location and time data with detector settings and target information. This creates WayPoint, FindPoint and GeoHunt files that are compatible with XChange 2.

WI-STREAM

Wi-Stream uses efficient low-power digital audio transmission to achieve no perceivable audio time lag (<10 ms) between the Wi-Stream enabled detector and the WM Wireless Module. With multiple channel capability, this wireless technology provides reliable communication with maximum sound quality.

Wi-Stream technology is offered in a range of Minelab detectors, however the WM modules are not cross compatible between detectors.

WM module and detector compatibility:

WM 12 - GPZ 7000
WM 10 - CTX 3030
WM 08 - EQUINOX Series
