Minelab

SDC 2300 Metal Detector

SDC 2300 Metal Detector

Regular price $4,999.00
Regular price Sale price $4,999.00
Sale Sold out
Taxes included. Shipping calculated at checkout.
Features

Experience the versatility and power of the SDC 2300.

A compact yet high-performance mid-range gold detector designed for all terrains, including land and underwater. Field-tested by Minelab professional testers in real gold fields, the SDC 2300 has proven its reliability and effectiveness, especially in heavily mineralized areas.

๐Ÿ’งWaterproof Design: fully submersible up to 10 feet.

๐Ÿ”ŠAudio & Visual Response: Integrated microphone and LED indicators for target size and proximity.

๐Ÿ’ชRugged & Compact Build: Boasts military-grade toughness and fits easily into carry-on luggage and most backpacks.

๐ŸŽฏEnhanced Sensitivity: Detects small gold in heavily mineralised ground, leading to new discoveries.

โ€œGreat for travel with its compact fold-up design. Waterproof up to 3 meters. Extra sensitive to fine gold. Now with an upgraded lithium battery pack and charger.โ€

What's In The Box
  • SDC Headphones
  • Rechargeable Lithium Battery
  • Wired Headphones
  • 240V Charger
  • 12V Charger
  • Armrest cover
Warranty

The metal detector includes aย 3-year warranty from the date of purchase, excluding the battery.

Downloads

Check out our collection of downloads to learn more about what the Minelab SDC 2300 Metal Detector has to offer!

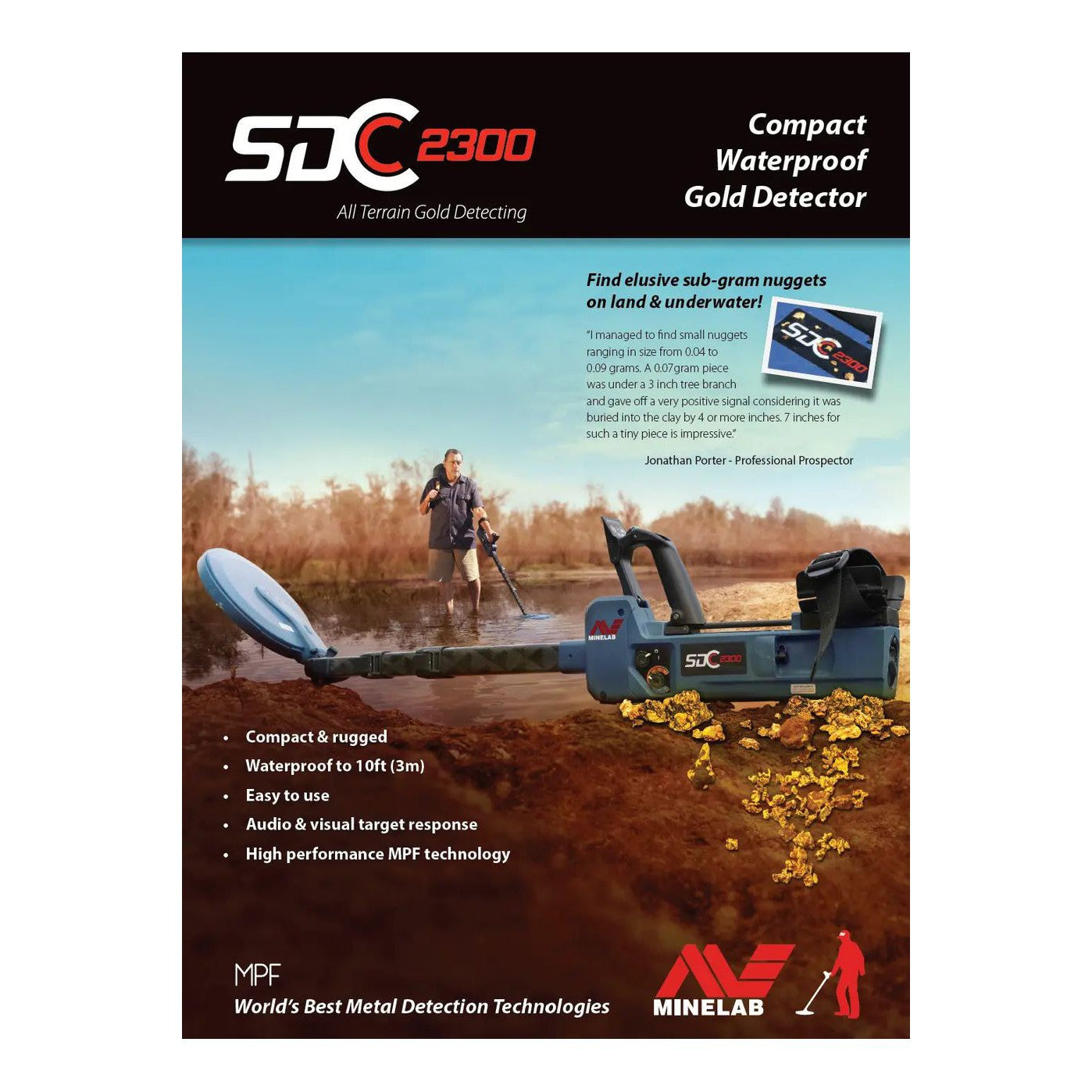

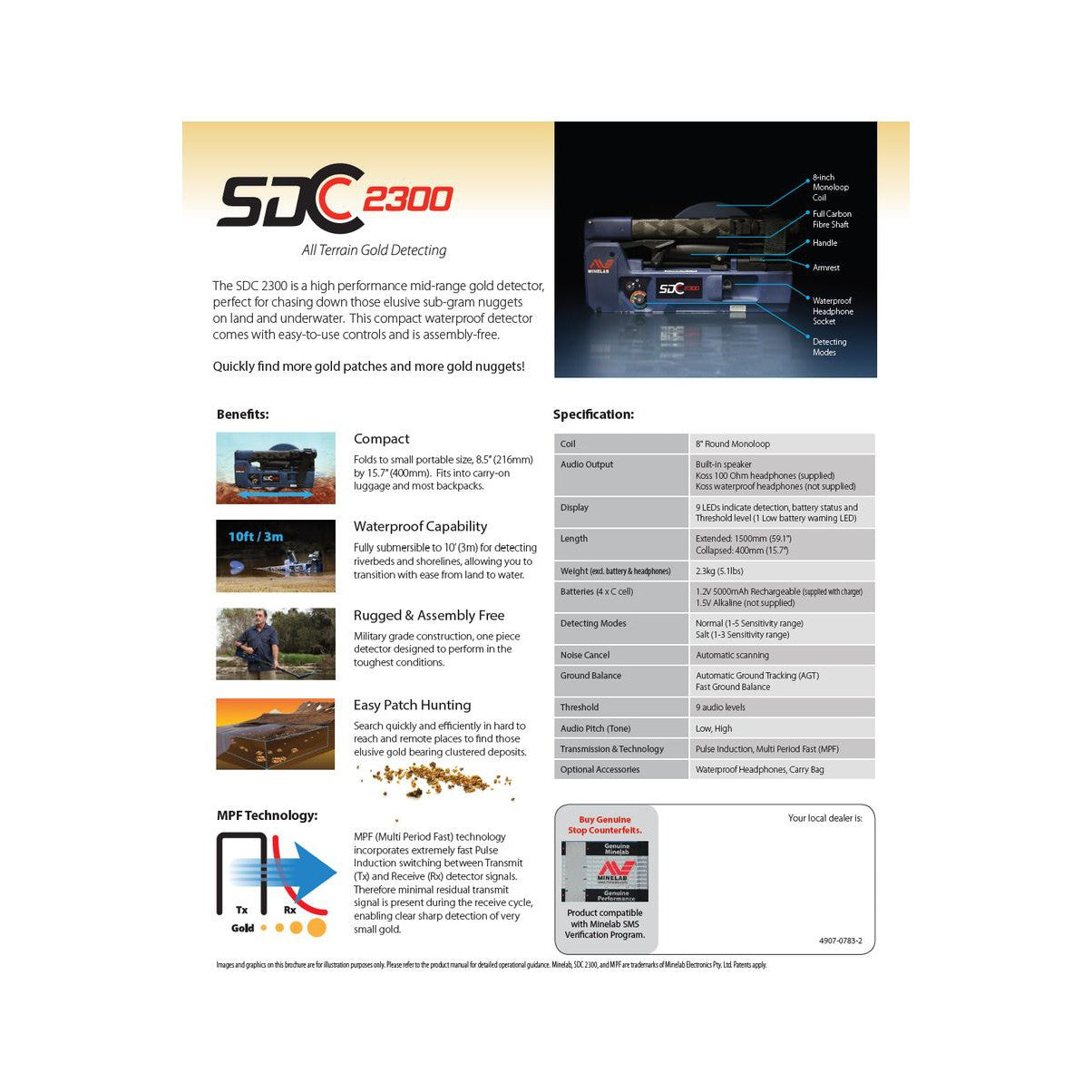

Minelab SDC 2300 Brochure

Minelab SDC 2300 Instruction Manual

Minelab SDC 2300 Getting Started Guide

ย

View full details
Untitled_design_5

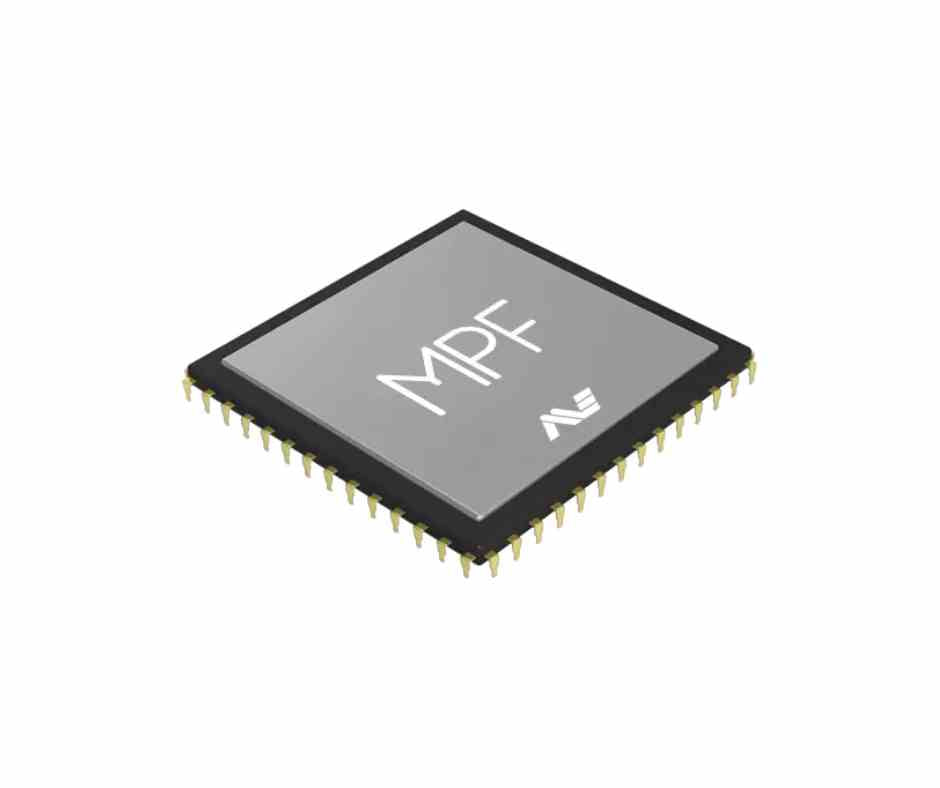

MPF TECHNOLOGY

MPF (Multi Period Fast) technology incorporates extremely fast Pulse Induction switching between Transmit (Tx) and Receive (Rx) detector signals. Therefore minimal residual transmit signal is present during the receive cycle, enabling clear sharp detection of very small gold.

Untitled_design_4

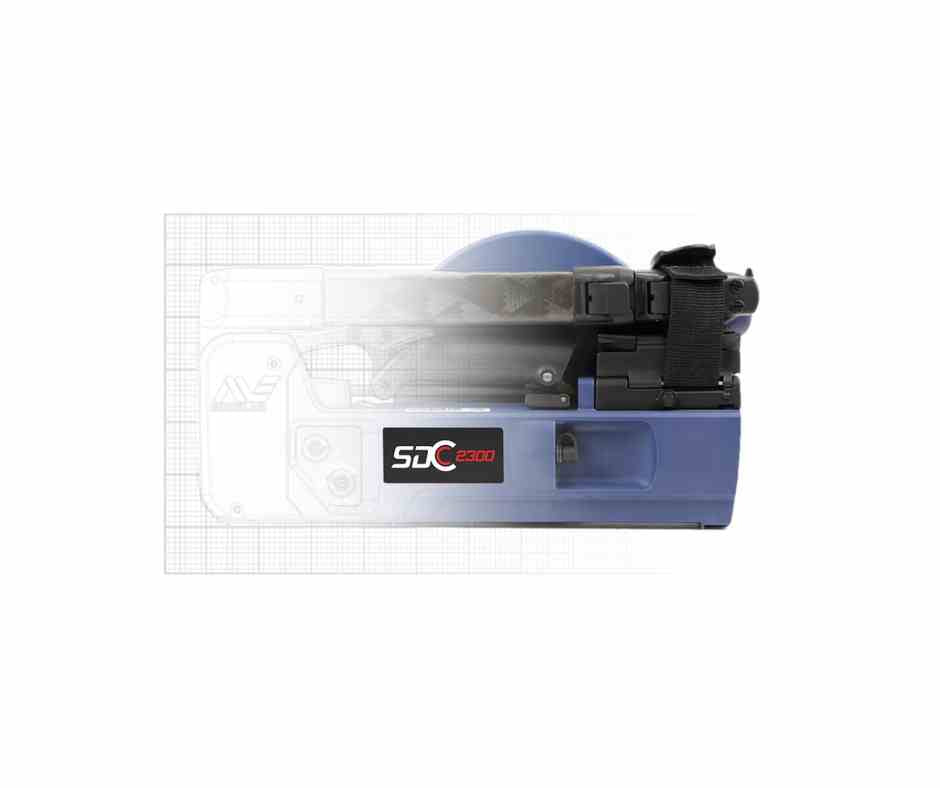

QUALITY DESIGN

The SDC 2300โ€™s mechanical platform has been designed and tested to military standards. Our R&D experts have selected high quality materials and ensured the product is easy to maneuver and operate.

  • COMPACT

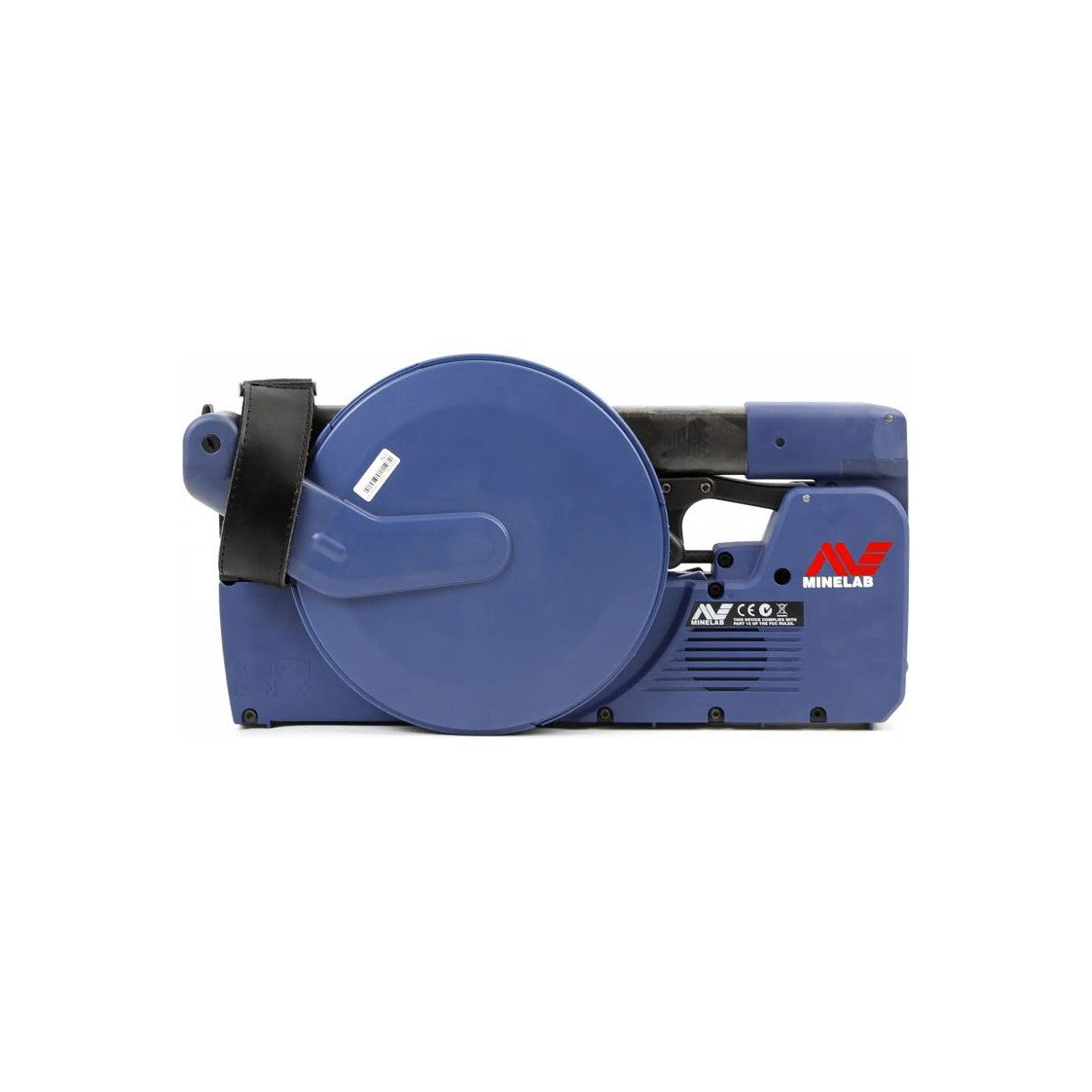

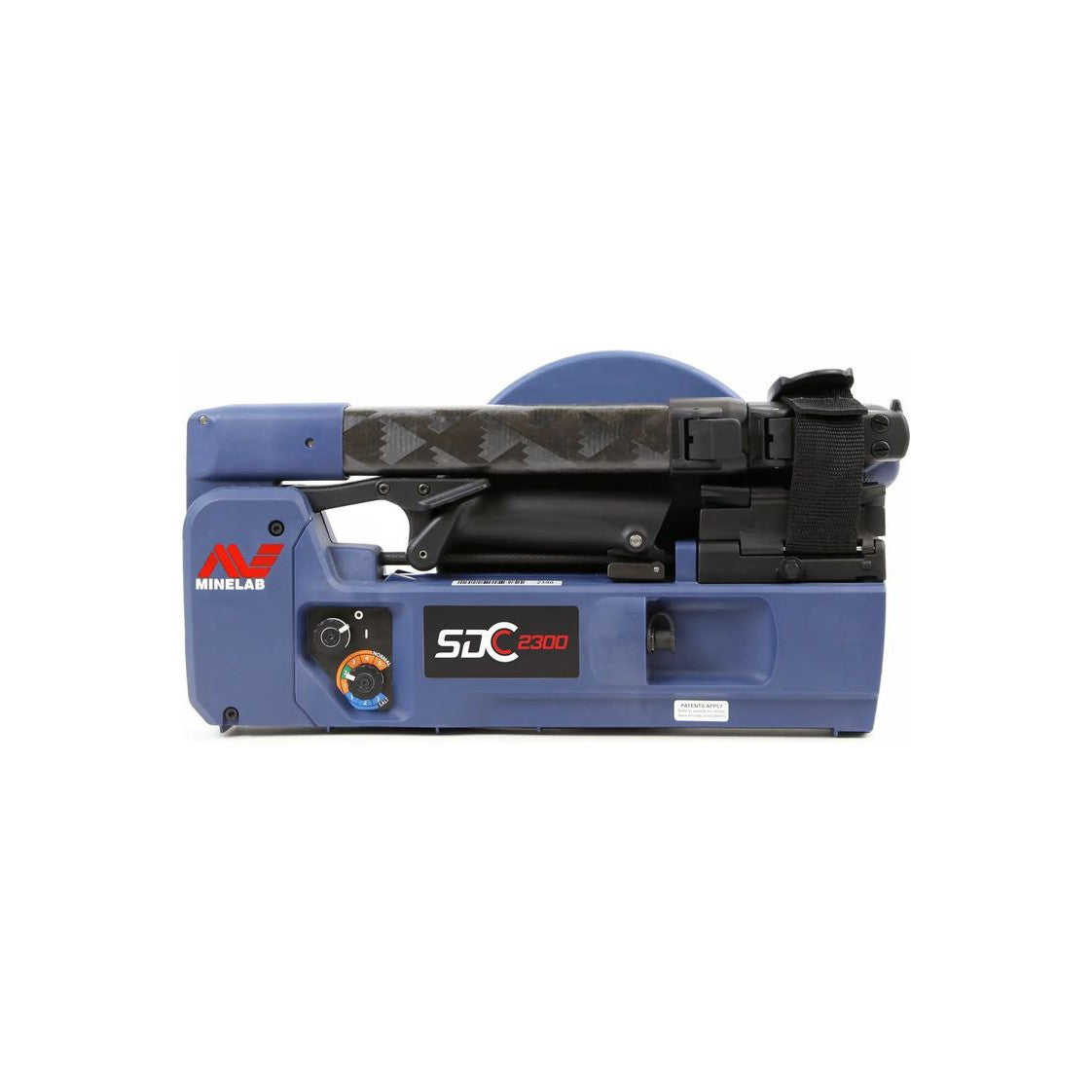

    Folds to small portable size, 8.5โ€ (216mm) by 15.7โ€ (400mm).ย  Fits into carry-on luggage and most backpacks.

  • WATERPROOF CAPABILITY

    Fully submersible to 10โ€™ (3m) for detecting riverbeds and shorelines, allowing you to transition with ease from land to water.ย

  • RUGGED & ASSEMBLY FREE

    Military grade construction, one piece detector designed to perform in the toughest conditions. Noย assembly required.

  • EASY PATCH HUNTING

    Search quickly and efficiently in hard to reach and remote places to find those elusive gold bearing clustered deposits.

  • MORE SENSITIVE

    The SDC 2300 is very sensitive to small gold scattered in heavily mineralised ground.ย This gold is often missed by prospectors with both VLF and PI detectors because of the difficult ground conditions and fine gold size. You can now detect the small gold missed in previously searched areas. These small gold finds can lead the way to new patches and bigger gold deposits.

  • VISUAL & AUDIO TARGET RESPONSE

    Theย SDC 2300 gold detector includes LED visual indicators and audio tones to identify target size and proximity.ย The detector will produce a quiet/low tone to indicate a small or deep target, or will produce a loud/high tone to indicate large or shallow target.

Specifications

SDC 2300 Tech Specs

Application: Gold Prospecting (waterproof 10ft)

Coil (standard): 8" Round Monoloop

Audio Output: Built-in speaker, Minelab headphones (supplied), Koss Waterproof Headphones (not supplied), Pro Sonic Wireless Audio (not supplied)

Visual Display: 9 LEDs indicate detection, battery status and threshold level; 1 low battery warning LED

Length: Extended: 1500 mm (59.1"), Collapsed: 400 mm (15.7โ€)

Weight: 2.3 kg (5.1 lbs)

Batteries: Li-on Battery Pack with Charger, 4 x C-cell 1.2 V 5000 mAh Rechargeable (not supplied), 4 X C-cell 1.5 V Alkaline (not supplied)

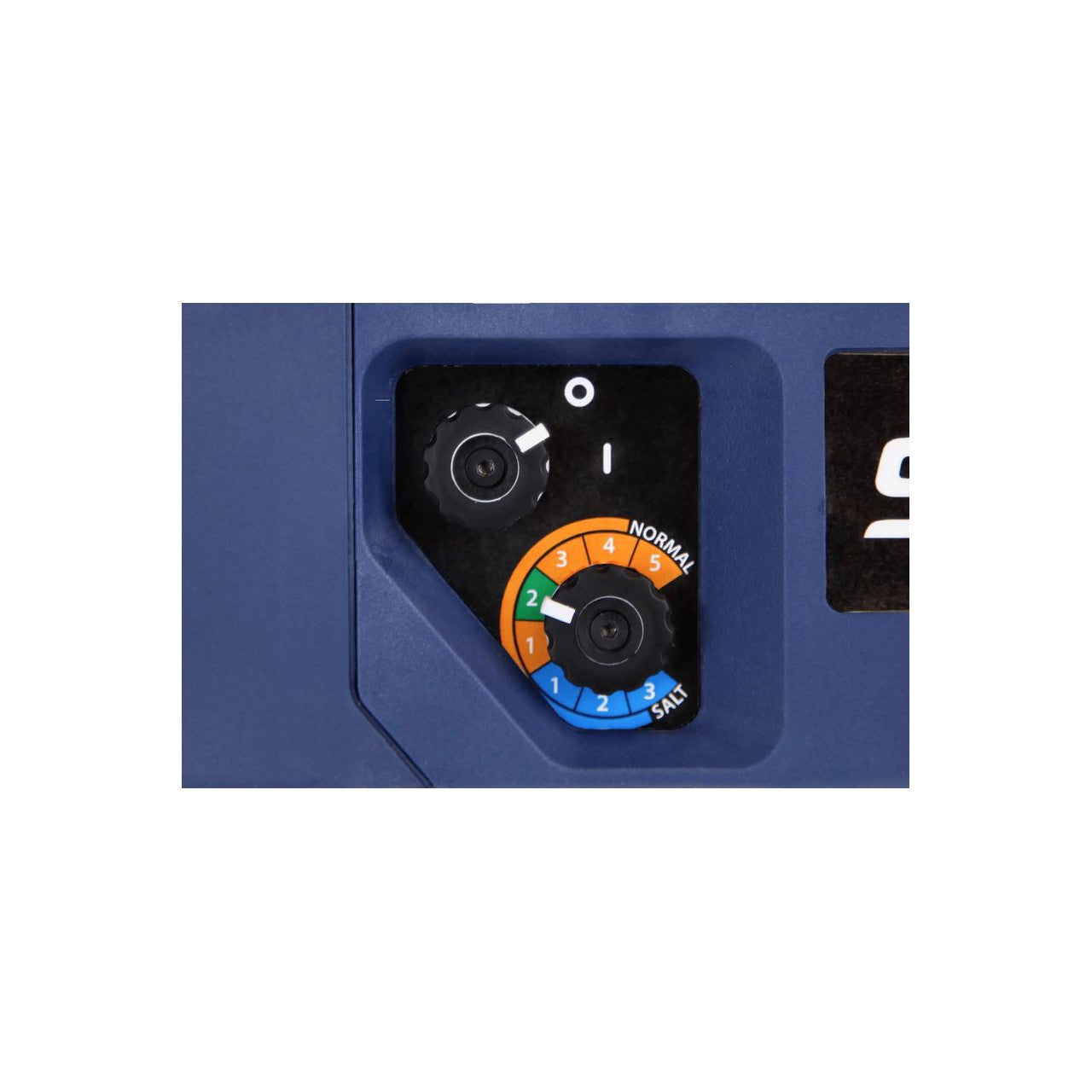

Detect Modes: Normal (1-5 Sensitivity range) & Salt (1-3 Sensitivity range)

Noise Cancel: Manually Initiated, Automatic Scanning

Ground Balance: Automatic Ground Tracking (AGT) Fast Ground Balance

Threshold: 9 audio levels

Audio Pitch: Low, High

Transmission & Technology: Pulse Induction (PI) and Multi Period Fast (MPF)

Warranty: 3 years control box & coil

Included Accessories: Armrest Cover, Coil Joint Protector

Optional Accessories: Koss Waterproof Headphones, Pro-Sonic Wireless Audio, Carry Bag

SDC 2300 Technologies

MPF

MPF (Multi Period Fast) technology incorporates extremely fast Pulse Induction switching between Transmit (Tx) and Receive (Rx) detector signals. Therefore minimal residual transmit signal is present during the receive cycle, enabling clear sharp detection of very small gold.
